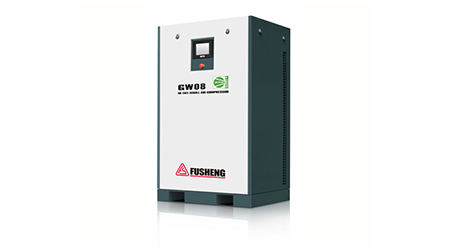

GW series oil-free scroll air compressor

Number：

Inquiry Add to Cart

Details

DESCRIPTION

Product Description

Fusheng GW scroll series combines advanced industrial technology, 100% oil-free, with high-efficiency motor and low-noise vibration operation, to provide high-quality oil-free compressed air solutions. Due to its sophisticated and planned design, the Fusheng GW scroll series has an ideal footprint, which can be placed in limited indoor space and workplaces; considerate time function and pressure section function, which can be adjusted according to the needs of users every day. Set the automatic start and stop of the air compressor, as well as the pressure when it starts and s, can memorize 3 sets of time, and the exhaust range is from 0.345 to 1.76 m3/min. Operating pressure is 7/8/10 bar; 5~20HP low power, low maintenance operating cost. Clean and oil-free – ISO8573-1, class 0 compressed air quality certification Active energy saving – start/stop control, no empty state. Intelligent air volume detection - according to the client's air demand to determine the number of airframes to start, to achieve energy saving effect

ADVANTAGE

Product advantages

advanced industrial technology

Fusheng GW scroll series combines advanced industrial technology, 100% oil-free, with high-efficiency motor and low-noise vibration operation, to provide high-quality oil-free compressed air solutions.
planning design

Due to its sophisticated and planned design, the Fusheng GW scroll series has an ideal footprint, which can be placed in limited indoor space and workplaces; the intimate time function and pressure section function can be used daily according to user needs.
Best energy-saving effect

Active energy saving – start/stop control, no empty state. Intelligent air volume detection - according to the client's air demand to determine the number of airframes to start, to achieve energy saving effect

SPECIFICATION SELECTION

Specification selection

GW series oil-free scroll air compressor

model	Air volume (m3/min)	Exhaust pressure (Mpa)	Rated power (kW)	Noise (dB(A))
GW04E-7B	0.44	0.7	3.7x1	61
GW04E-8B	0.425	0.8	3.7x1	61
GW04E-10B	0.345	1.0	3.7x1	61
GW04A-7B	0.44	0.7	3.7x1	61
GW04A-8B	0.425	0.8	3.7x1	61
GW04A-10B	0.345	1.0	3.7x1	61
GW04A-7P	0.44	0.7	3.7x1	61
GW04A-8P	0.425	0.8	3.7x1	61
GW04A-10P	0.345	1.0	3.7x1	61
GW08A-7B	0.88	0.7	3.7x2	63
GW08A-8B	0.85	0.8	3.7x2	63
GW08A-10B	0.69	1.0	3.7x2	63
GW11A-7B	1.32	0.7	3.7x3	64
GW11A-8B	1.275	0.8	3.7x3	64
GW11A-10B	1.035	1.0	3.7x3	64
GW1-7B	1.76	0.7	3.7x4	65
GW1-8B	1.70	0.8	3.7x4	65
GW1-10B	1.38	1.0	3.7x4	65
注1:自由空气流量是依据ISO1217，第3版，附录C1996进行测量，参考条件：干燥空气，吸气压力 1bar.
注2:噪音级别根据ISO2151,2004版允许误差3dB(A)进行测量。
